Fusion PVD Heavy Industrial Facility: High-Vacuum Cylindrical Plasma Chamber Operating with Titanium Cathodes and Multi-Tier Rotary Fixtures in Lahore
Pakistan's premier industrial PVD vacuum coating plant: 16+ non-tarnishing titanium finishes on stainless steel sheets, wedding hall chairs, architectural cladding, and luxury hardware. Certified 2,500 HV hardness and 10-year indoor warranty.
Fusion PVD Heavy Industrial Facility: High-Vacuum Cylindrical Plasma Chamber Operating with Titanium Cathodes and Multi-Tier Rotary Fixtures in Lahore
Traditional gold electroplating and spray lacquers in Pakistan fail rapidly under humidity, perspiration, and commercial wear. Fusion's industrial PVD (Physical Vapour Deposition) technology operates at molecular levels inside high-vacuum plasma chambers, depositing energetic titanium ions directly into the atomic matrix of stainless steel.
The resulting Titanium Nitride (TiN) layer measures 2,000 to 2,500 Vickers Hardness (HV)—making it virtually scratch-proof, heat-resistant up to 400°C, and 100% chemically inert against oxidation, salt mist, human sweat, and commercial detergents.
Inside our chamber, pressure is evacuated down to 10⁻³ mbar. Gaseous argon is ionized into plasma, bombarding titanium targets to vaporize metallic atoms that chemically synthesize with nitrogen gas, creating a diamond-hard ceramic surface that never oxidizes.
We sell operational used PVD vacuum coating machines in ready stock in Lahore for urgent liquidation, and import turnkey brand-new Chinese plants with complete local installation, training, and 10-year metallurgical expertise.
Every component processed at Fusion undergoes strict laboratory-controlled protocols to guarantee uniform atomic bonding.
Automated multi-stage ultrasonic baths eliminate all polishing buffing compounds, mineral oils, and surface residues in de-ionized water at 65°C.
Rotary carousels enter the sealed vessel. Heavy diffusion and turbo-molecular pumps evacuate the chamber down to a deep vacuum of 10⁻³ to 10⁻⁴ mbar.
High-voltage glow discharge bombards components with argon ions, atom-stripping microscopic oxide films to expose pristine metallic lattice bonding sites.
Solid 99.99% pure titanium cathode targets are vaporized into an energetic ionized metallic plasma by controlled electric arc discharge.
Nitrogen, acetylene, or oxygen gas is infused. Titanium ions react in mid-plasma to synthesize ceramic TiN (Gold), TiCN (Rose Gold/Black), or ZrN films.
Components cool under controlled vacuum. Each batch is inspected via spectrophotometer for Delta-E < 0.5 color consistency, then wrapped in protective laser film.
SS 304 gold wedding chairs, round dining table bases, bridal thrones, bar stools, and buffet counters.
Elevator cabin interiors, hotel lobby column covers, laser-cut jaali screens, and commercial tower facades.
Heavy-duty 120kg SS hinges, watch-crown knurled door handles, glass pivots, and luxury bathroom fittings.

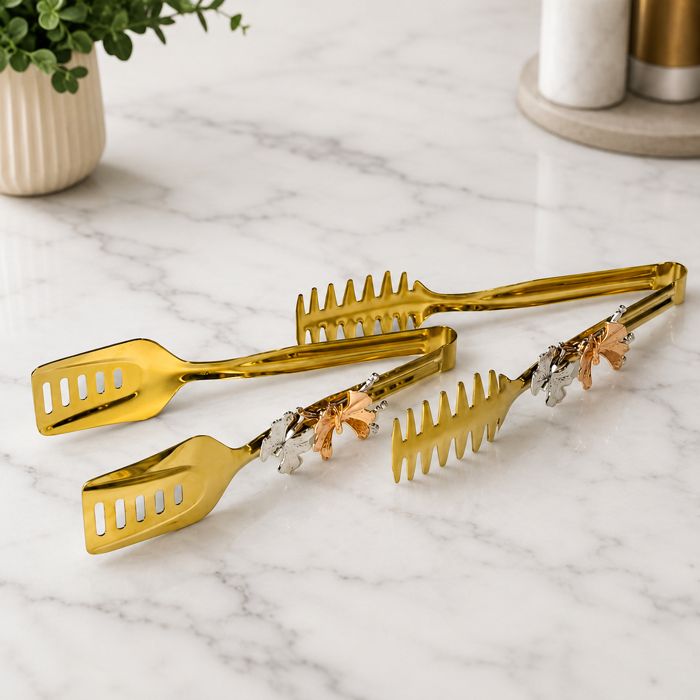

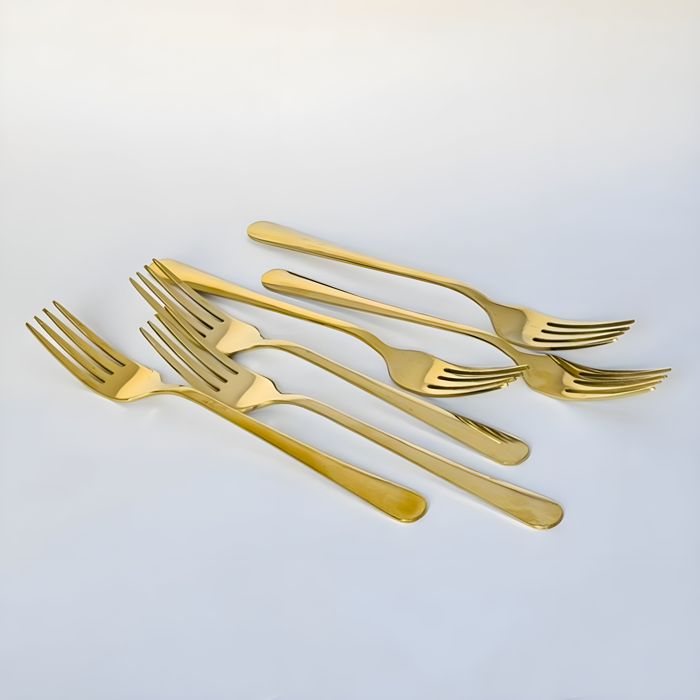

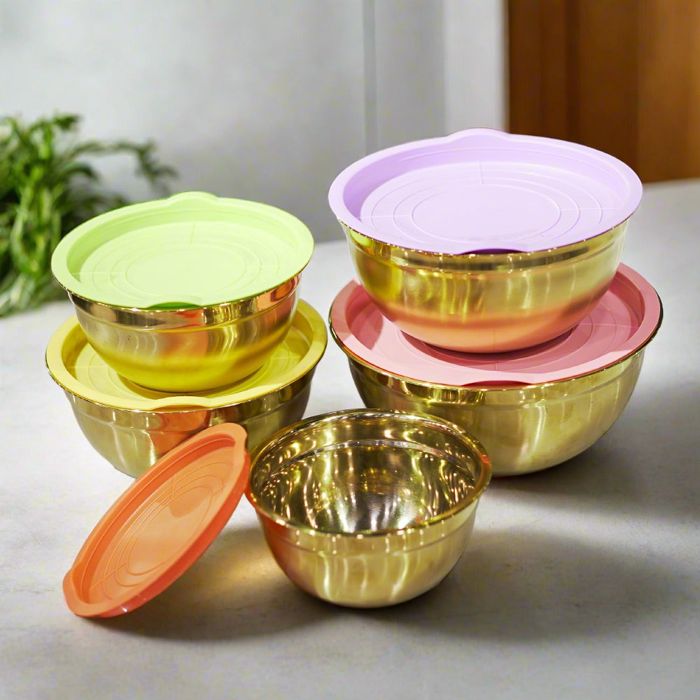

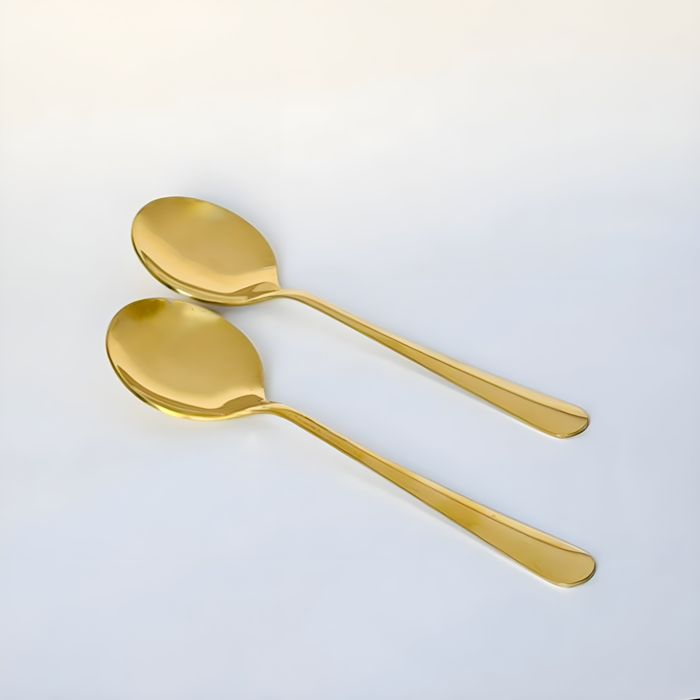

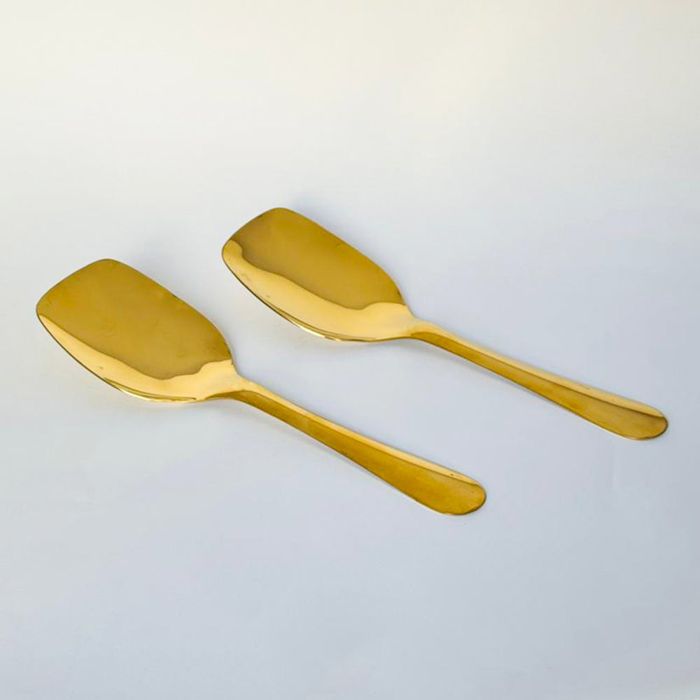

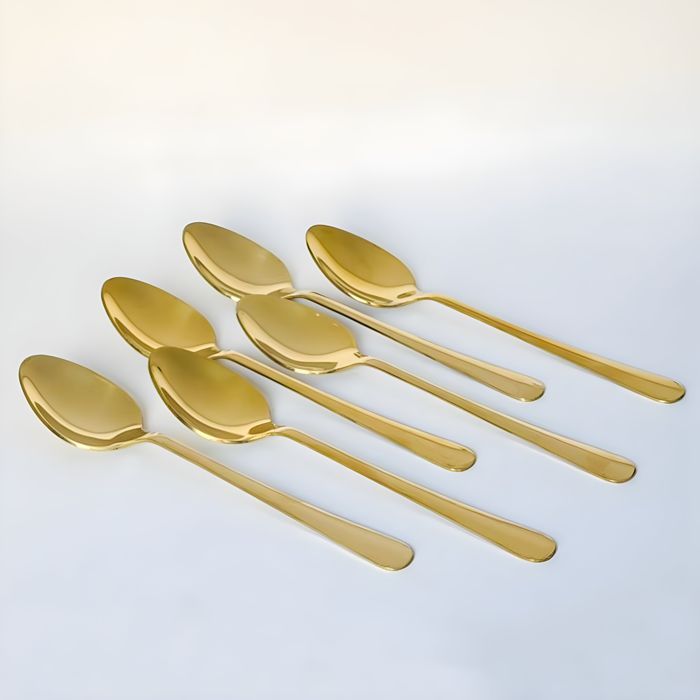

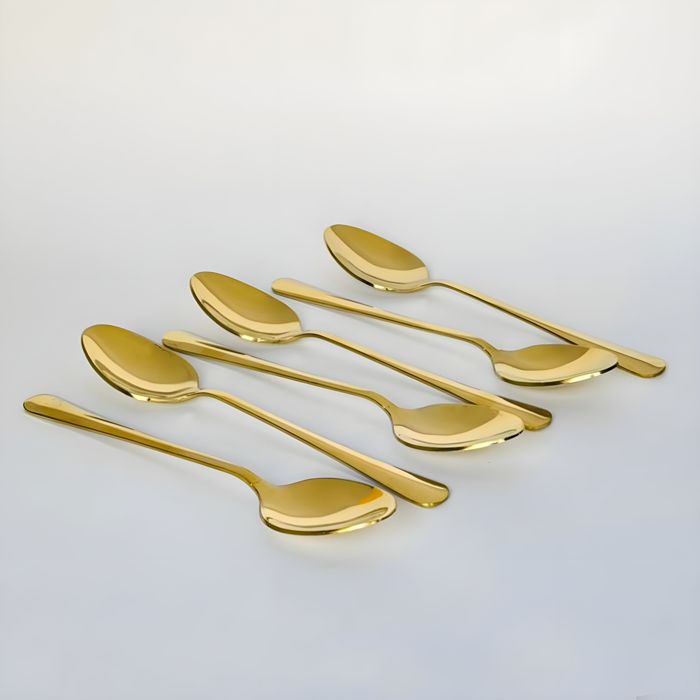

14G stainless steel cutlery sets, salad bowls, serving tongs, and chafing dishes (100% food-grade inert).
Boutique display racks, mannequin stands, luxury brand signage, and gold reception feature walls.
Functional TiN and CrN wear-resistant coatings for pharmaceutical tooling, plastic dies, and surgical instruments.
Key answers regarding plant capability, scratch resistance, pricing, and sample approvals.
PVD (Physical Vapour Deposition) is an advanced high-vacuum metallurgical coating process. Solid titanium is vaporized into an energetic plasma in a sealed vacuum chamber at 10⁻³ mbar, bonding atom-by-atom with certified stainless steel (SS 304/316) to create a ceramic-hard Titanium Nitride (TiN) layer (2,000–2,500 Vickers). It is 10x harder than electroplating and never tarnishes, chips, or fades in Pakistan's diverse climate.
Fusion operates one of Pakistan's largest industrial PVD vacuum coating plants in Lahore (Raiwind Road heavy production facility) with an executive client and sample center at 15 Lakhowal Road, Ring Road Bahria Town Interchange, Lahore. We provide nationwide freight delivery to Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Sialkot, Peshawar, and Quetta.
We coat stainless steel 304 & 316, brass, titanium, and chrome-plated alloys. Our heavy industrial vacuum chambers accommodate flat stainless steel sheets up to 8ft × 4ft (and 10ft × 4ft) and large 3D architectural furniture frames up to 7ft tall.
Indoors, our PVD titanium coating carries a guaranteed 10+ year lifespan without tarnishing, peeling, or fading. Outdoors on marine-grade SS 316 with routine cleaning, it delivers 5–7+ years of corrosion-free service even in coastal environments like Karachi.
We offer 16+ repeatable computerized shades: 24K Mirror Gold, Champagne Gold, Rose Gold, Titanium Black, Antique Bronze, Sapphire Blue, Emerald Green, and Copper on Mirror (No.8) or Hairline (No.4) bases.
Send your drawings, specifications, or sample requirements. We confirm feasibility and quotes within hours. Call 0300 0387466 · [email protected]
